All-in-One Full HD Video Magnifier & Full Page Text-to-Speech (OCR)

HD • Full Page Text-to-Speech (OCR)

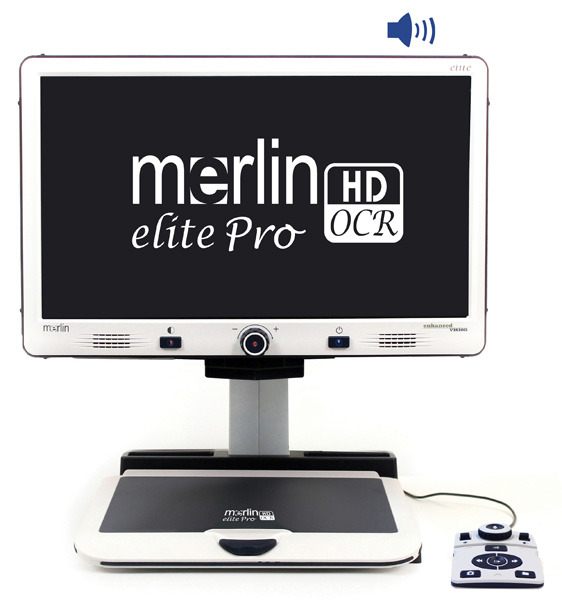

Merlin elite Pro is a high performance desktop video magnifier (CCTV), featuring a Full HD Sony® 1080p camera and Full Page Text-to-Speech (OCR). Merlin elite Pro’s high definition camera displays crystal clear images in vibrant color and contrast while its high resolution LCD and large field of view produce maximum detail on a clear bold display. With the push of one button Merlin elite Pro allows you to change from live image mode to full page OCR mode to have it read your favorite article or book aloud. Merlin elite Pro is a perfect solution for anybody looking for a powerful all-in-one electronic magnifier.

CCTV Features:

  • Sony® Full HD 1080p auto focus camera
  • 24” high resolution HD LCD for superior image quality
  • Magnification up to 70x
  • 32 viewing modes to optimize contrast and brightness
  • Screen easily pivots horizontally and vertically to provide the most comfortable viewing position
  • Low profile XY table with a user friendly lock mechanism

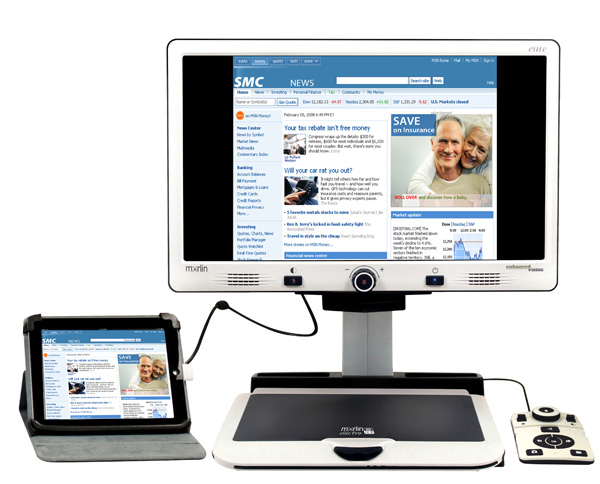

  • Computer compatible – toggle between CCTV and computer, connects to tablets & iPad



OCR Features:

  • 13 Megapixel Camera for accurate Full Page Text-to-Speech (OCR)
  • 3 OCR reading formats (Full Page Text, Full Page Picture & Single Line Text) for the optimum reading experience
  • Easy-to-use console with simple and advanced modes
  • Multiple language recognition
  • Male & Female premium voices
  • Save documents, pictures or books and export files to your PC
  • Setup is easy, just plug in and begin



Click on the images below to view larger.

merlin elite pro electronic magnifier merlin elite pro electronic magnifier merlin elite pro electronic magnifier merlin elite pro electronic magnifier merlin elite pro electronic magnifier merlin elite pro electronic magnifier merlin elite pro electronic magnifier

Product Measurements

24” LCD: 27.75” H x 22.75” W x 20” D (70.5cm H X 57.8cm W x 50.8cm D)

Camera

High Definition Sony 1080p Full HD Camera

Product Weight:

40.1lbs (18.2 Kg)

Magnification Range

Normal Range: 2.4X to 41X

Extended Range: 2.4x – 73x

Power Supply
Input voltage/current: 120-240 VAC / 0.3-0.5A (nominal)

Output voltage: 19 VDC

Frequency: 50 OR 60 Hz

Power usage: While ON 30W – While in Standby Less than 5W  – While OFF Less than 1W
Equipment Classification (IEC 601-1):

Type of Protection: Class 1

Degree of Protection: Type B

Mode of Operation: Continuous

Operating temperature range: 0-40°C / 32-104°F

Storage/transport temperature range: 0-60°C / 32-140°F

Warranty: 3 Years

The file size of an OCR scan varies based on text density. 1000 full page scans at minimum can be stored on Merlin Elite Pro.



*Product specifications subject to change without notice. OCR Storage Capacity
