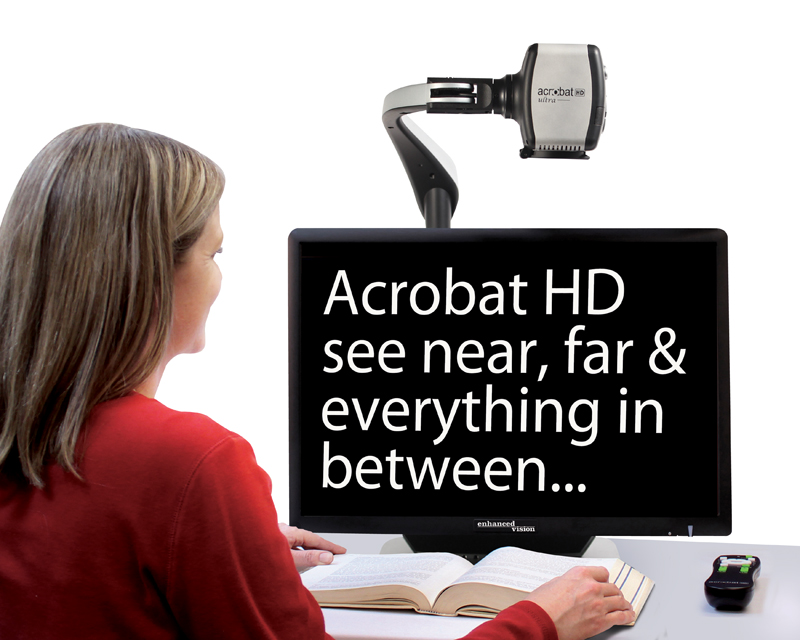

Acrobat HD ultra LCD – High Definition Images in Bright Vivid Colorsacrobat-hd-makeup[1]

Acrobat HD ultra’s new Full HD 3-in-1 camera provides the best image quality available today! Enjoy brighter sharper colors and bold contrast with this feature rich electronic magnifier. A wider field of view allows you to see even more of what you want.

It’s our most flexible solution for reading, writing or viewing magnified images at any distance. Use it up close like a mirror for applying make-up or other personal grooming.

By simply rotating the camera you can magnify images in the distance. Use it to view presentations, paperwork, even work on crafts and hobbies. Acrobat HD ultra is ideal for work, school or home.

ACROBAT HD ULTRA LCD is a complete system featuring a 3-in-1 Full HD camera with a 20”, 22”, 24”, or 27” high resolution HD LCD producing maximum picture detail for clear, vivid color display.

The adjustable arm, tilting screen, and rotating capability allows the camera to be positioned at any angle for optimal viewing.



Features:

  • acrobat-zoom-bg[1]Full HD auto focus 3-in-1 camera for seeing yourself up close, reading and distance viewing
  • Detachable Full HD camera for use at multiple work stations
  • Various arms and positioning options provide maximum flexibility
  • True mirror image in self-viewing mode
  • Memory setting for each HD camera position
  • Compact size minimizes space needed on table or desk
  • 20”, 22”, 24” or 27” high resolution HD LCD monitors provide 1.6x to 99.5x adjustable magnification (varies with LCD size)
  • Large field of view
  • 28 available viewing modes to optimize contrast and brightness
  • Wrap around dual keypad allows easy access to controls
  • Line markers and object locator
  • Remote control unit features instant on/off (standby)
  • Computer compatible (additional hardware required)
  • Set up is easy, just plug in and begin
  • 2 year warranty
  • Designed and Assembled in the USA

Click on the images below to view larger.

Acrobat HD-ultra electronic magnifier  Acrobat HD-ultra electronic magnifier  Acrobat HD-ultra electronic magnifier  Acrobat HD-ultra electronic magnifier  Acrobat HD-ultra electronic magnifier  Acrobat HD-ultra electronic magnifier

Product Dimensions:
20” LCD: 21”H x 19”W x 8”D (53cm x 48.25cm x 20cm)
22” LCD: 21”H x 20”W x 8”D (53cm x 51cm x 20cm)
24” LCD: 21”H x 22”W x 8”D (53cm x 56cm x 20cm)
27” LCD: 21”H x 25”W x 8”D (53cm x 63.5cm x 20cm)

Product Weight:
20” LCD: 18.4 lbs / 8.35 kg
22” LCD: 18.6 lbs / 8.5 kg
24” LCD: 19.6 lbs /8.9 kg
27” LCD: 21 lbs / 9.5 kg

Display:
Type: TFT Active Matrix LCD Average lifetime: 25,000 hours
Monitor (common to *20”, *22″,*24 & *27″ models):
Resolution: 1600 x 900 (20″ model)
Resolution: 1920 x 1080 (22”, 24” & 27″ models)
Response Rate: 5 milliseconds (20”, 22″ & 24″ monitors)
Response Rate: 3 milliseconds (27” monitor)
* all monitor specifications subject to change without prior notice

Magnification range:
20” LCD: 1.4X (minimum) – to 52.5X (maximum)
22” LCD: 1.5X (minimum) – to 57.8X (maximum)
24” LCD: 1.6X (minimum) – to 63X (maximum)
27” LCD: 1.8X (minimum) – to 70.9X (maximum)
20”, 22” 24” Field of View (Near Mode): 10.8 inches (min); .24 (max)
27” Field of View (Near Mode): 11.6 inches (min); .24 (max)
20”, 22” & 24” Working Distance (Near Mode): 17 inches
27” Working Distance (Near Mode): 18.4 inches

Video output Resolution on LCD:
SMPTE 296M – HD 720p 60/50

Viewing Modes:
Color, Black & White, High Contrast, Positive/Negative, Digital Color Select (5 modes)

Power Supply:
Input voltage/current: 120-240 VAC / 0.3-0.5A (nominal)

Frequency: 60/50 Hz

Power usage: 27W (nominal)

Equipment Classification: (IEC 601-1)

Type of Protection: Class 1

Degree of Protection: Type B

Mode of Operation: Continuous

Operating temperature range: 10-40°C / 50-104°F

Storage/transport temperature range: 0-60°C / 32-140°F

Warranty: 2 years

Acrobat HD ultra Product Brochure Download
Acrobat HD ultra User Manual Download

All Product User Manuals



Software and Firmware Downloads
