Acrobat LCD 3-in-1 Electronic Magnifier for Low Vision


  • Overview
  • Specs
  • Downloads
  • Video

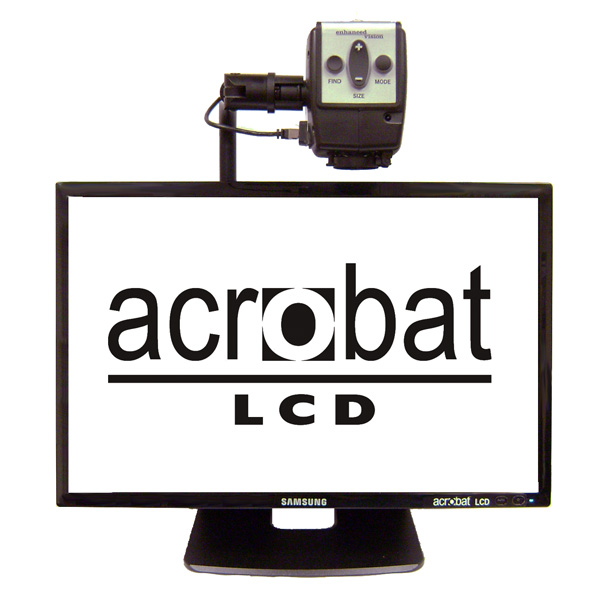

Acrobat LCD – 3-in-1 Electronic Desktop Magnifier

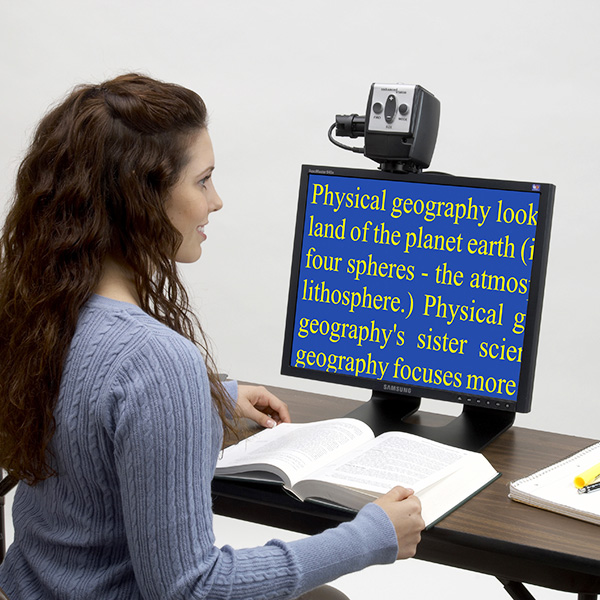

It’s our most flexible device for seeing at any distance. Just point the camera at what you want to see. Use it up close like a mirror for applying make-up or other personal grooming, or for magnifying things farther away. The Acrobat LCD with many built in features is a complete system for use at work, home or school.





Key Features

  • Auto focus 3-in-1 camera for seeing yourself up close, reading and distance viewing
  • True mirror image while in self-viewing mode
  • Memory settings for each camera position
  • Various arms and positioning options provides maximum flexibility
  • Detachable camera for use at multiple workstations
  • 19″ monitor provides up to 65x adjustable magnification
  • 28 available viewing modes to optimize contrast and brightness
  • Wrap around dual keypad allows easy access to controls
  • Computer compatible (Additional hardware required)
  • Optional rolling carrying case for easy transport
  • Left-hand mode
  • Tilt screen
  • Line markers, object locator, remote control and more…
  • 2 year warranty



Color Select Feature

With our low vision electronic magnifiers, many color select options are available for increased contrast. Depending on your eye condition, certain text and background color combinations allow for ease of reading. All Enhanced Vision solutions incorporate 2 to 7 color select options. One of the color select options is black and white. It will convert anything you are viewing to a black and white image for increased contrast.



X-Y Table

The X-Y Table (optional accessory) is simple to use for reading and allows you to easily move the material underneath the camera.





Mini X-Y Table

The Mini X-Y Table (optional accessory) is simple to use for reading and allows you to easily move the material underneath the camera.





Acrobat Carrying Cases

Convenient carrying cases are available for your Acrobat in a variety of configurations, making setup and transportation even easier.



Product Dimensions:

  • 19” LCD: 21”H x 16”W x 8”D (53cm x 41cm x 20cm)
  • 22” LCD: 21”H x 20”W x 8”D (53cm x 51cm x 20cm)
  • 24” LCD: 21”H x 22”W x 8”D (53cm x 56cm x 20cm)

Product Weight:

  • 19” LCD: 17 lbs. / 7.7 kg (without optional carrying case)
  • 22” LCD: 18.6 lbs / 8.5 kg
  • 24” LCD: 19.6 lbs

Display:
Type: Standard Diagonal LCD
Average lifetime: 10,000 hours
Monitor (common to *19″,*22 & *24″ models):
Resolution: 1280 x 1024 (19″ model)
Resolution: 1680 x 1050 (22″ model)
Resolution: 1920 x 1080 (24″ model)
Response Rate: 5 milliseconds (19″ monitor)
Response Rate: 2 milliseconds (22″ & 24″ monitor)
* all monitor specifications subject to change without prior notice
camera: Removable CCD, Autofocus

Magnification range:
19” LCD: 2X (minimum) – 65X (maximum)
22” LCD: 2.3X (minimum) – to 75X (maximum)
24” LCD: 3.5X (minimum) – to 81.8X (maximum)
19”/22” Field of View (Near Mode): 6 inches (min); .25 (max)
24” Field of View (Near Mode): 6.5 inches (min); 5.9 (max)
19”/22” Working Distance (Near Mode): 17 inches
24” Working Distance (Near Mode): 16.5 inches

Viewing Modes:

  • Color, Black & White, High Contrast
  • Positive/Negative, Digital Color Select (3 modes)

Power supply:
Input voltage/current: 120-240 VAC / 0.3-0.5A (nominal)
Frequency: 60/50 Hz
Power usage: 60W (nominal)
Equipment Classification (iec 601-1):
Type of Protection: Class 1
Degree of Protection: Type B
Mode of Operation: Continuous
Operating temperature range: 10-40°C / 50-104°F
Storage/transport temperature range: 0-60°C / 32-140°F

Warranty: 2 years
*Product specifications subject to change without notice

Product Brochure Download
User Manual – USA Download
User Manual – Europe Download
